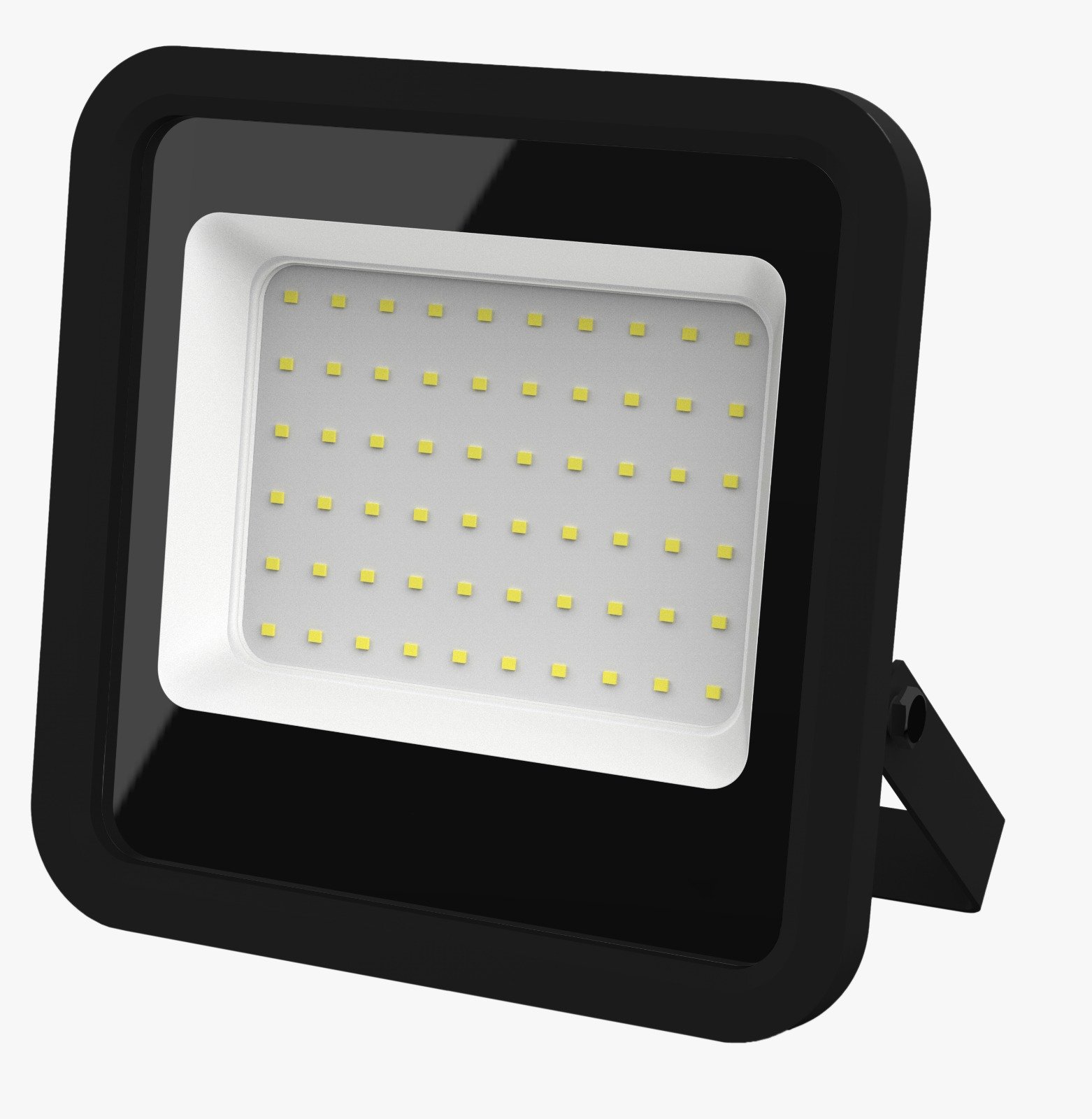

TECHNICAL SPECIFICATIONS 30W LED FLOOD LIGHT GRI-FL-30
|
ELECTRICAL SPECIFICATION |
INPUT VOLTAGE |
100-275 V AC |
|
FREQUENCY |
50HZ |
|
|
WATTAGE OF LIGHT |
30watt |
|
|
DC VOLTAGE |
60 V |
|
|
DC CURRENT |
500mA |
|
|
POWER FACTOR |
>0.9 |
|
|
TOTAL HARMONIC DISTORTION |
<= 9% |
|
|
POWER EFFICIENCY |
>87% |
|
|
LIFE |
>50000hrs |
|
|
SYSTEM CONSUMPTION |
30.61W |
|
|
|
|
|
|
OPTICAL SPECIFICATION |
LUMINOUS EFFICACY |
130-140LM/W |
|
CCT |
6500K |
|
|
C.R.I |
80-90 |
|
|
PATTERN |
UNIFORM |
|
|
TYPE OF DIFFUSER |
Glass |
|
|
LED VIEWING ANGLE |
120 DEG |
|
|
LED MAKE |
Seoul Semiconductor |
|
|
DRIVER SPECIFICATION |
POWER EFFICIENCY |
>87% |
|
CONFIGURATION OF DRIVER |
CONSTANT CURRENT |
|
|
CHANNELS IN THE DRIVER |
SINGLE |
|
|
|
|
|
|
OTHER SPECIFICATION |
OPERATING TEMPERATURE |
-20°C TO 60° |
|
FIXTURE MATERIAL |
ALUMINIUM DIACASTING |
|
|
LED JUNCTION TEMPERATURE |
125°C(max) |
|
|
SHORT CIRCUIT PROTECTION |
AVAILABLE |
|
|
ESD PROTECTION |
AVAILABLE IN DRIVER |
|
|
|
|
|
|
WARRANTY |
|
2 YEARS |
